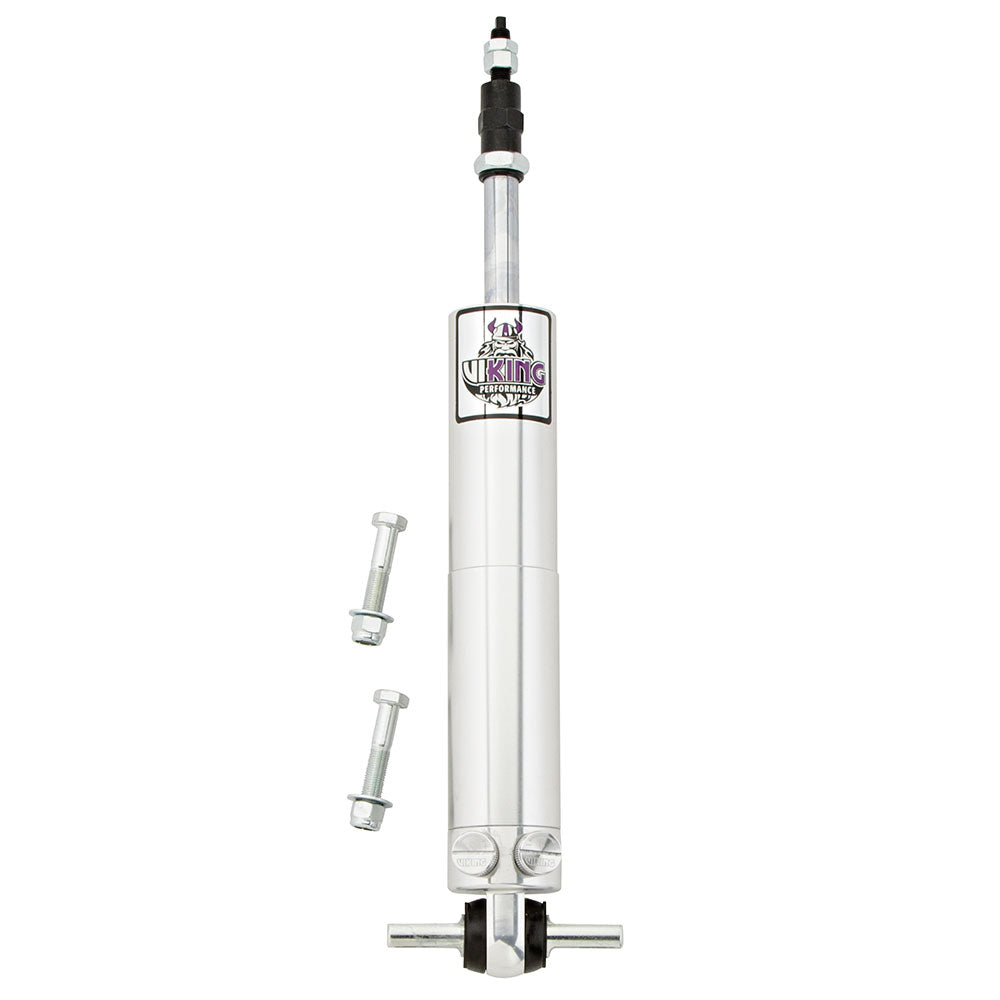

3rd Gen F-Body Viking Crusader Rear Smooth Body Shocks
Click to zoom in

Have Questions?

3rd Gen F-Body Viking Crusader Rear Smooth Body Shocks

2 sold in last 8 hours
Many in stock
The patented Viking Crusader™ shock absorbers and struts were developed based on requests from the pro-touring...
Size Guide

customers are viewing this product

The patented Viking Crusader™ shock absorbers and struts were developed based on requests from the pro-touring community, along with the small tire and high horsepower drag race customers. With these vehicles, there are situations that require rebound forces in excess of what standard passive adjustable shock absorbers and struts can provide. The other factor in our design parameters was the frustration that adjustable shocks and struts, in general, are too complex for the average person to be able to revalve. From these requests, the Crusader™ was born. These shock absorbers and struts have various valving options dependent on vehicle use and vehicle specifications. The Crusader is available as either a double adjustable shock, with independent compression and rebound tuning, or a triple adjustable where the compression adjustment is separated into low-speed and high-speed adjustments. The rebound valving has a progressive curve that is strictly determined via orifice control. A progressive valve will have a softer low-speed force that ramps up very quickly as shaft speed increases. However, do not let this description deceive you, as these shocks and struts can generate huge forces at low speeds, depending on the needle and seat combination selected. In fact, this line of shock absorbers and struts produces forces far greater than nearly all others on the market. Depending on the needle and seat combination selected, the adjustment range can cover a very large range or a more narrow range with very small defined increments.

These patented shock absorbers and struts feature an interchangeable needle and seat design. The rebound valving adjustment range can be changed without completely disassembling the shock absorber. With the shock or strut in a vice on its side in the fully extended position, the rebound knob can be taken off, and the needle and seat combination can be changed out. This can be accomplished with basic hand tools. There are no expensive “special tools” required to be purchased from Viking. The process is similar to jetting a carburetor. Obviously, it is critical that everything is kept extremely clean, as there are very small orifices that must be kept free of debris.

* Lightweight aluminum twin-tube design with a sleek clear anodized finish. * Adjustment knobs: Labeled with a “C” for compression and an “R” for rebound with distinctive clicks. The triple adjustable also has a 1/8" hex for high-speed compression adjustment.

* Each click on the adjustment works and makes a change. There are no dead clicks. That is why all Viking tuning recommendations are from full soft. Other shock brands often recommend tuning from full tight, as often the first 10+ clicks provide no changes to the valving.

* By not offering non-adjustable or single adjustable, Viking is able to maximize stroke for each body length, ensuring you get the most travel out of your shock or strut.

* Aluminum, precision machined piston with a deflective disc and a P.T.F.E. / bronze piston seal. * Hard chrome plated centerless ground piston rod (shocks utilize a 5/8" rod; struts utilize a 7/8" rod).

* Three-step sealing system.

* All shocks and struts can be rebuilt or revalved by the Viking factory or any authorized rebuilder. CrusaderTM rebound valving range may be easily revalved by the user.

* In coil-over shocks, Viking provides bearing mounts as standard, not the less expensive poly mounts. Bearings perform better in supporting the weight of the vehicle and provide for misalignment when needed, thereby relieving unnecessary stress on the piston rod and seals. They are also very durable and don't break down like poly mounts do over time.

* In bearing mount shocks, Viking uses stainless steel bearing races, not inexpensive nylon race bearings like some competing brands.

* Left-hand threads between the base and the body ensures that the shock/strut doesn’t come apart when adjusting the ride height, as can occur with certain other brands.

* Viking's double adjustable shocks and struts are priced close to the single adjustable price of most other manufacturers. Viking triple adjustable shocks and struts are priced close to the double adjustable price of most other manufacturers. Viking focuses on independently adjustable compression and rebound shocks and struts only, which means a lower price for you!

* Two-year materials and workmanship warranty.

* Each shock and strut is hand built, tested, and serialized in our Lakeville, Minnesota factory.
